Description

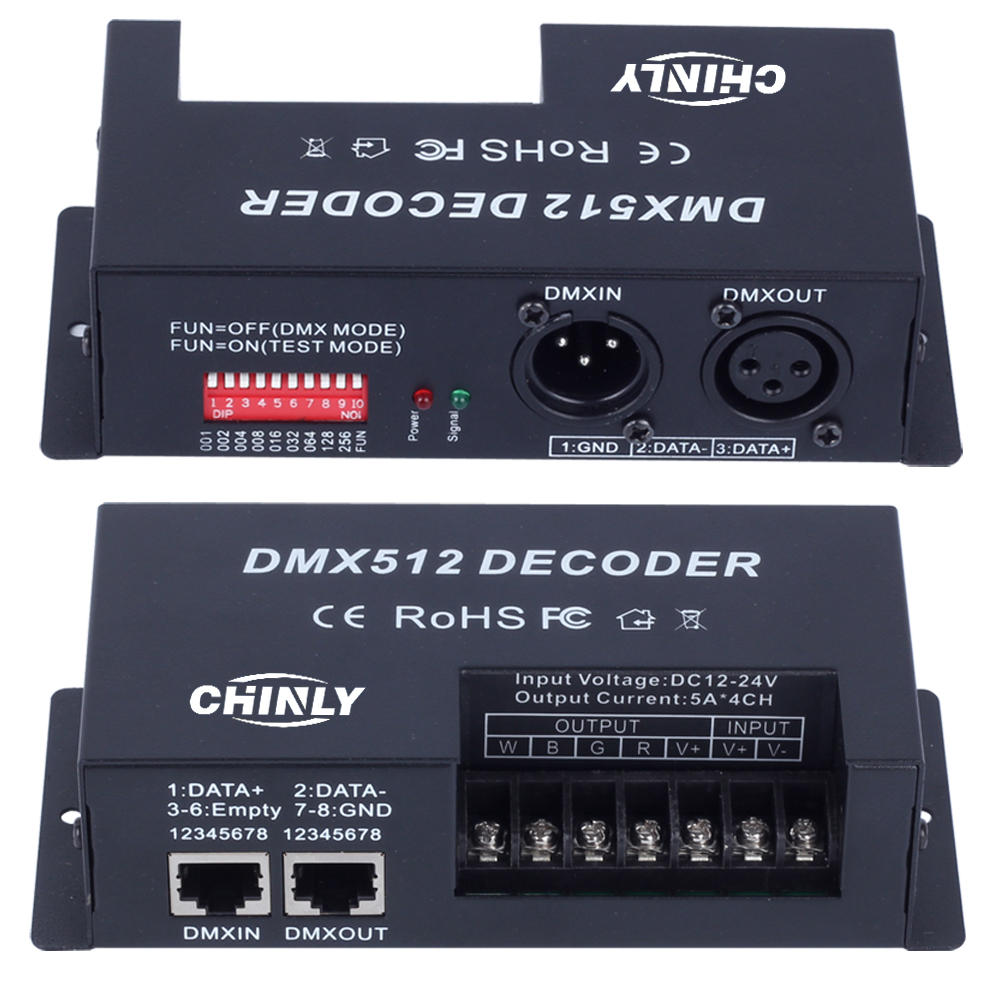

Specification:Voltage:DC12-24VWattage:240W(12V), 480W(24V)Maximum load current:5A/CH*4CHOutput gray level:256Input signal:DMX512/1990 Output signal:4 channels constant PWMOutput DMX:4 channelsSize:L147*W63*H40Feature:There are 4 output channels, can connect with single or RGBW lamps0-100% dimming output, each channel 256 gray levelsInternational standard DMX512 input protocol, address code set by DIP switches;Each occupied by 4 DMX address.Installation Notes:This kind of controller works only under DC12V-24V, which is provided by the matched controllable main power, or else the controller will be damaged.The UTP wire is connected hand in hand to make the cable, when two or more controller connected.The power supply should be off when connecting the electric wires, and it can be turned on till making sure the wires are connected correctly and the indicator of main power in red is lighting.Controller should work under the environment of adequately ventilated, dry, not corroded, no flammable gas and rust.Please check the wires connection regularly so that the wires of aged, rust-eaten, and damaged insulation spacer can be replaced timelyPackage included:1*DC12-24V RGBW 4 channels DMX512 decoder
